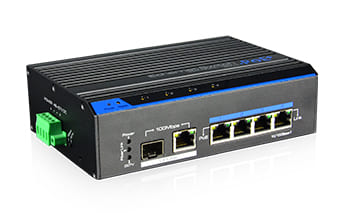

Industrial 4 Ports PoE Fast Ethernet Switch
The un-managed industrial ethernet switch provides one uplink ethernet port and one uplink optical port (100Mbps), four 100Mbps PoE ethernet ports which supporting af/at power supply standard. This product is designed for high definition IP camera network access; which supports one key CCTV model, can achieve VLAN, restrain the Netstorm, protect the information security and prevent the virus spread and Ethernet attack; it also integrates optical interface to achieve the perfect performance which blended with fiber optical transceivers and network switches, to solve the problem of long-distance transmission. The product could be used in network security video surveillance, network project etc.
Complex industrial environments place high demands on product design and environmental adaptability. UTEPO Plug-and-Play Industrial Fast Ethernet PoE Switches are deigned to meet the requirements for stable and reliable transmission and power supply in the industrial sector and meet the industrial protection standard Class 4.
Model | UTP7204E-POE-A1 |
Downstream Ports | 4* 10/100Base-TX |
Uplink Ports | 1*100Mbps SFP Port and 1*10/100Base-TX |
Network Standard | IEEE802.3 , IEEE802.3u, EEE802.3 X |
Switching Capacity | 1.5Gbps |
Packet Forwarding Rate | 0.9Mpps |
Forwarding Modes | Store and Forward |
Packet Buffer | 512k |
MAC Address Table | 2K |
PoE Standard | 802.3af/at |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+), 3/6(-) |
PoE Output Power | 44~57V DC , 30 watts max |
PoE Budget | 60 watts max |
Surge Immunity | 6KV Execute: IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute: IEC61000-4-2 | |
Input Voltage | DC 48~57V |
Power Consumption | <5W |
Operating Temperature | -40℃~75℃ |
Storage Temperature | -40℃~85℃ |
Humidity(Non-condensing) | 5%-95% |

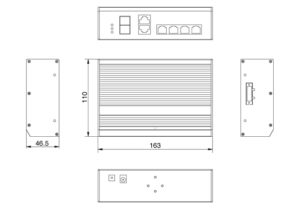

Dimension(L×W×H) | 159mm×110mm×46mm |
Weight | 530g |
MTBF | 200000 Hours |
Certification | CE, FCC, ROHS |
